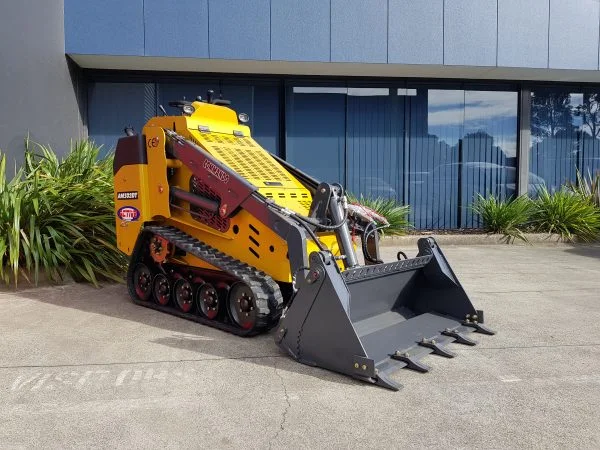

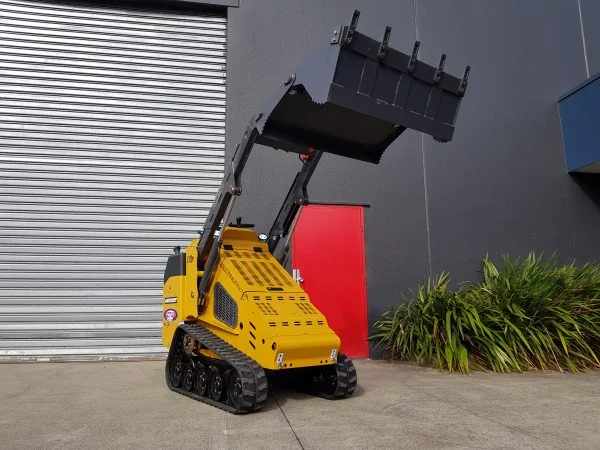

2023 Commando AM302DT Mini skid steer Loader

Description

DIGGA ATTACHMENTS ALL AVAILABLE TO SUIT!!!!



Available in a wheeled or tracked design, these Mini diesel engine loaders have greater power and capability then their smaller petrol engine equivalent. With the larger 30hp diesel engine, users can be faster and more efficient on a greater range of job sites.

SWL500KG, TRACKED, UNIVERSAL HALF HITCH,

4 IN 1 BUCKET WITH BOLT ON TEETH,

1/2INCH NPT FLAT FACE COUPLER 3RD VALVE,

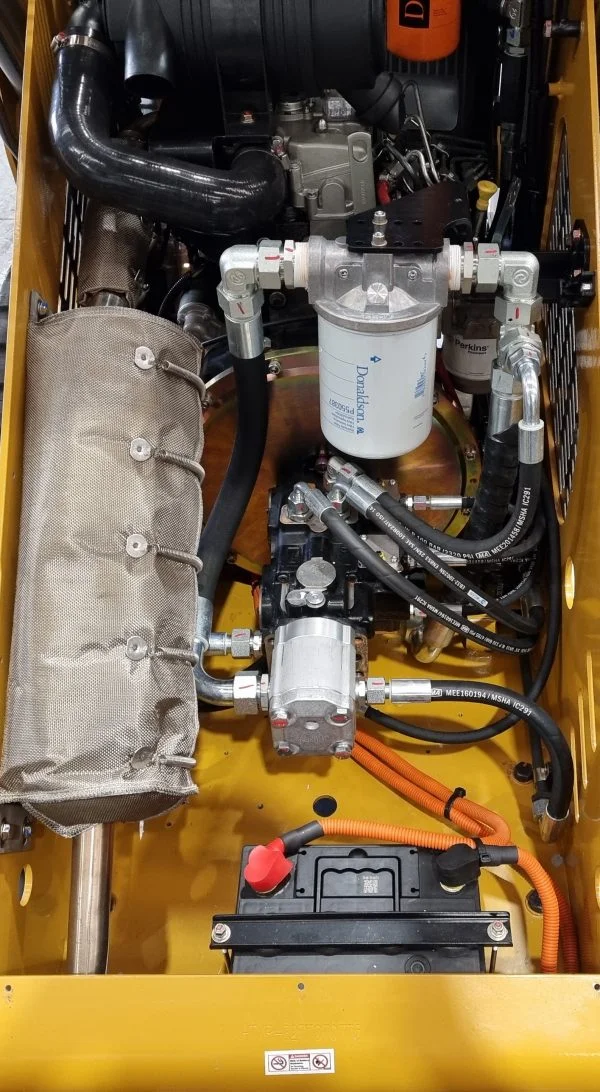

PERKINS DIESEL 30HP ENGINE,

DANFOSS SINGLE DRIVE MOTORS,

HYDRO CONTROL SINGLE JOYSTICK CONTROL,

DONALDSON AIR CLEANER RADIAL SEAL,

DONALDSON HYDRAULIC FILTERS SUCTION & RETURN,

PERKINS ENGINE FILTERS,

ITALIAN HANSA-TMP TRIPLE PUMP,

HEAVY DUTY STEP PLATFORM SPRING.



Mini Loader Models



AM302DT/ AM302DW



Speed

0-7 km/hr (Tracked)



0-8 km/hr (Wheeled)



Engine Perkins 403C-15 30hp

Fuel Diesel

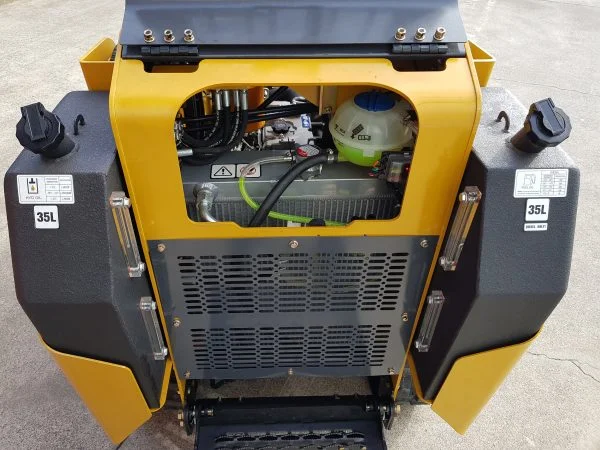

Fuel Tank Volume 35L

Starter Key start

Battery 12v 45Ah Maintenance Free

Air Filter Donaldson

Hydraulic Valve

Italian HC Hydraulic Servo Control Valve

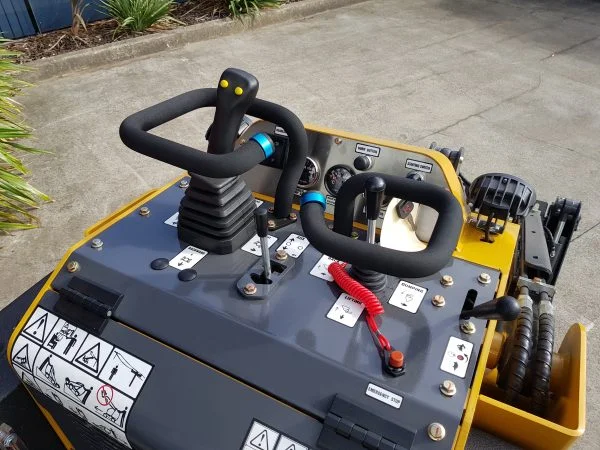

Joystick drive control



Hydraulic Pump

1 x Danfoss (Danish) Pump, 18 Mpa



2 x Italian HANSA high pressure pump, 25 Mpa



Total Flow of 100 L/min, 16-25 Mpa @ 2400 rpm

 Hydraulic Oil Tank 35 L

Hydraulic Oil Cooler Standard

Hydraulic Connections Italian DNP Flat Faced G1/2, G3/8 Quick Connects

Bearings Japanese NSK throughout



Operating Weight

1400 kg (wheeled) with 4 IN 1 Bucket



1700 kg (tracked) with 4 IN 1 Bucket



Machine Dimensions

2075 mm (L) x 1060mm (W) x 1496 mm (H) (wheeled)

2067 mm (L) x 1080mm (W) x 1496 mm (H) (tracked)



Due to continual advancements in technology, Active Machinery are constantly improving their quality range.

Therefore the information and pictures shown should be used as a guide only.

– Australia Wide Freight (is NOT included in the purchase
price, however is available at very competitive rates).

Conditions apply. Offers are available until stock lasts.
Freight is additional. Finance available to approved applicates. Pictures shown
are for illustration purposes only. Prices subject to change.

Ring for current pricing. Images and details correct at time
of publication as machines are advertised in multiple locations. Active
Machinery retains the rights to withdraw any machine from sale at any time.
